20ft Platform Container

Overview

The 20 ft Platform container is a special equipment option used for heavy or oversized cargo that is not suitable for a closed container. It provides an open deck designed for top and side loading, allowing crane handling and robust lashing for secure transport. Platform specifications can vary by manufacturer and fleet, so confirm exact unit details when planning heavy lifts, concentrated loads, or tight stowage requirements.

Open deck supports top/side loading and crane handling

Intended for heavy loads and cargo requiring strong securing

Cargo protection depends on packaging/coverings (open exposure)

Specs may vary by manufacturer / container fleet

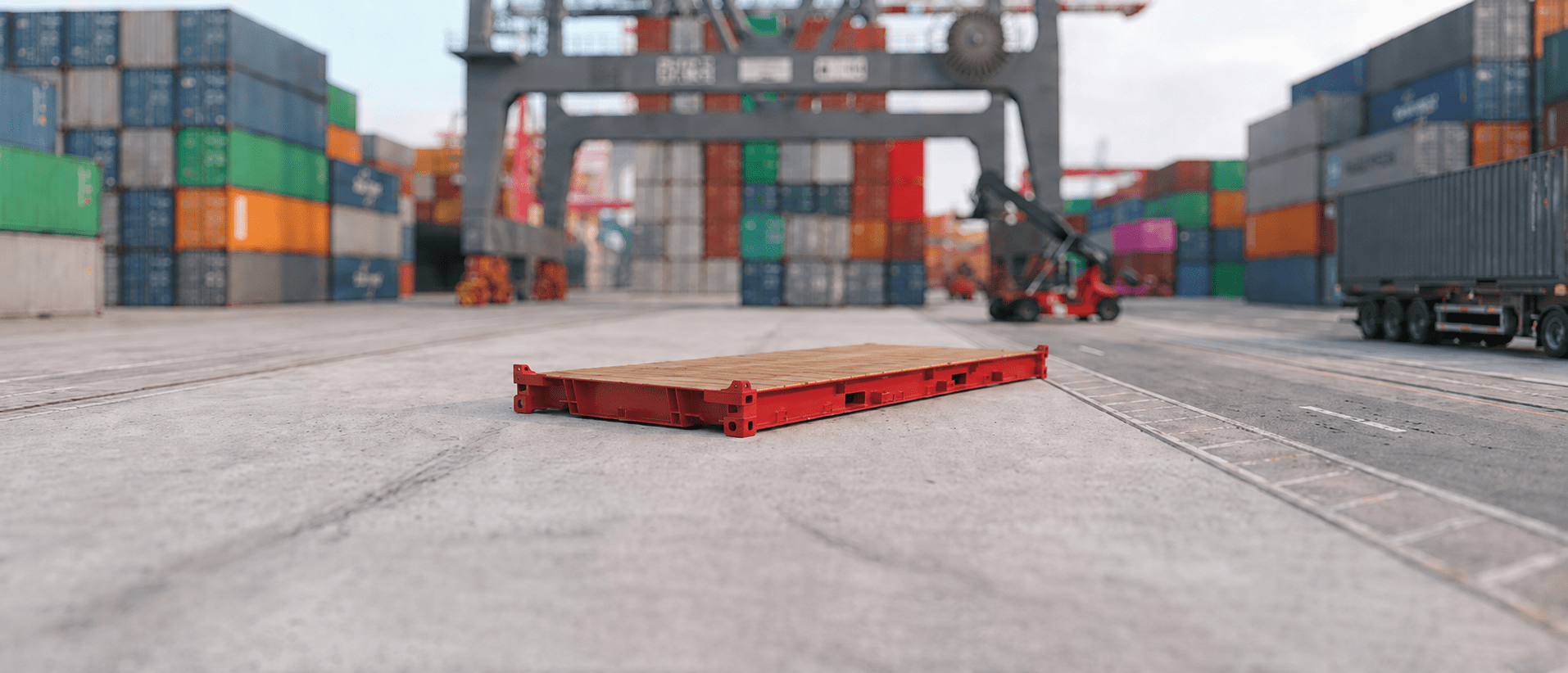

20 ft Platform Container Image Gallery

Best for / Not ideal for

Best for	Not ideal for
Heavy machinery and industrial components requiring crane handling	Cargo requiring weather-tight protection without additional packaging/covering
Over-length or awkward cargo that benefits from open deck positioning	Loose general cargo better suited to a closed dry container
Loads requiring robust lashing and blocking/bracing during transit	Temperature-controlled cargo (reefer required)

Industries & typical commodities

Heavy machinery: industrial machinery, generators, construction equipment, and heavy components.
Construction / Project cargo: structural steel, pipes, long fabricated pieces, and oversized project materials.
Energy / Infrastructure: transformers, turbines, generators, and large components requiring special handling and lashing.
Mining equipment: heavy machinery, large parts, and oversized components.
Manufacturing: large fabricated units, industrial assemblies, and crated equipment.
Vehicles and equipment: specialized vehicles or machinery suitable for open-deck transport.
Steel and metal products: beams, plates, coils, and other large metal components when properly secured.

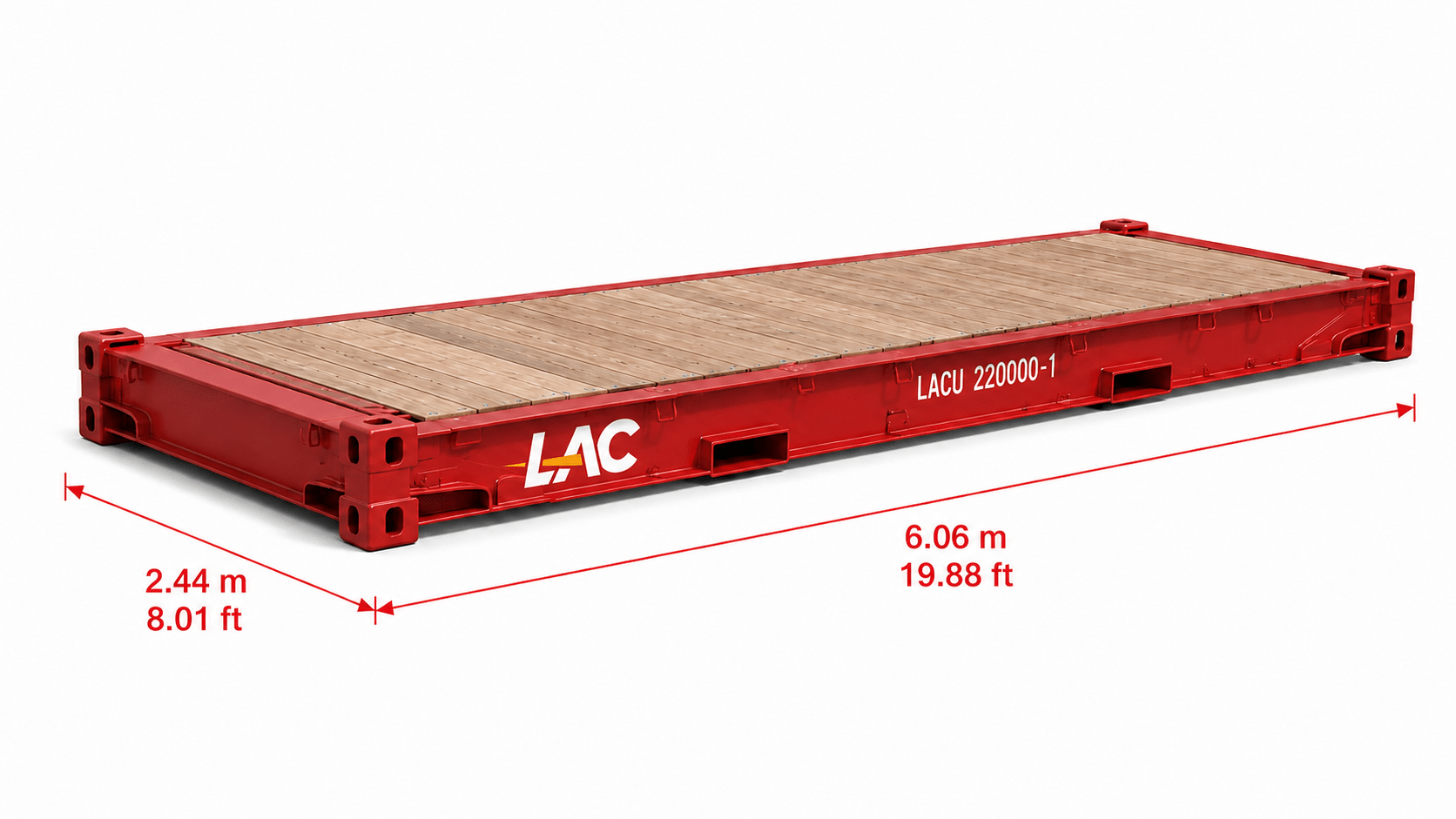

Sizes & dimensions – 20ft Platform Container

Dimension	Metric	Imperial
External Length	6.06 m	19.88 ft
External Width	2.44 m	8.01 ft

Capacity & weights – 20ft Platform Container

Spec	Metric	Imperial
Tare Weight	2,520 kg	5,555.64 lbs
Payload Capacity	27,960 kg	61,641.24 lbs
Max Gross Weight	30,480 kg	67,196.89 lbs

How many pallets fit in a 20ft Platform Container?

Pallet capacity varies by loading pattern and cargo type. Use the estimates below only as a quick reference:

US standard pallets: up to 10

Euro pallets: up to 11

Note: platform containers are primarily used for heavy/oversized cargo, so usable deck space often depends on lashing needs, access lanes, and any approved overhang rather than pallet count.

Handling recommendations

Keep weight evenly distributed; avoid eccentric loading that can twist the frame.

Use proper bedding/dunnage so weight transfers to the main structural members (don’t rely on “floor” behavior like a box container).

Secure cargo with appropriate lashing + blocking & bracing to prevent shifting.

Confirm carrier requirements for out-of-gauge planning and stowage position (lost slots can apply depending on OOG).

Protect cargo from weather exposure using suitable coverings/packaging where needed.

FAQs about 20 ft Platform Containers

What is a 20 ft Platform container used for?

A 20 ft Platform container is used for heavy or oversized cargo that is not suitable for a closed dry container. The open deck allows top and side loading, which is helpful for crane handling and for positioning long or awkward items. Because platform equipment can vary by manufacturer and fleet, confirm the unit’s limits and key dimensions when planning concentrated loads, specialized stowage, or tight handling clearances.

How many pallets fit in a 20 ft Platform container?

Platforms are not primarily defined by pallet count, since they’re commonly booked for heavy-lift or out-of-gauge cargo where lashing and access needs define usable space. If palletized cargo is loaded in a straightforward single-layer plan without overhang, a 20 ft footprint often aligns with about 10 US pallets or 11 Euro pallets. Actual results vary with load pattern, securing requirements, and any access lanes needed for unloading.

Is a 20 ft Platform container waterproof and sealed?

A platform is an open piece of equipment, so it does not provide weather-tight protection like a standard container. Cargo may be exposed to rain, spray, and sunlight unless protected with appropriate wrapping, tarps, or purpose-built packaging. If your cargo is moisture-sensitive, plan protection in advance and minimize exposure during handling. Packaging requirements should match the full route, terminals, and the securing method used for transport.

When should I choose a Platform vs Flat Rack container?

Choose a Platform when you need an open deck for heavy or long cargo and the platform’s design suits your load plan (including bedding and securing). A Flat Rack may be preferred when end-wall features or other flat-rack characteristics are beneficial for handling and securing. In practice, the decision depends on cargo geometry, center of gravity, lifting method, lashing plan, and carrier requirements for stowage approvals and routing constraints.

What cargo is not suitable for a 20 ft Platform container?

A 20 ft Platform is not suitable for cargo requiring full enclosure, strict weather protection without additional packaging, or temperature control. It can also be a poor fit for loose general cargo that would be safer and easier to secure inside a closed dry container. Suitability depends on cargo shape, lift points, center of gravity, and the securing plan, so confirm handling and lashing requirements before booking.
